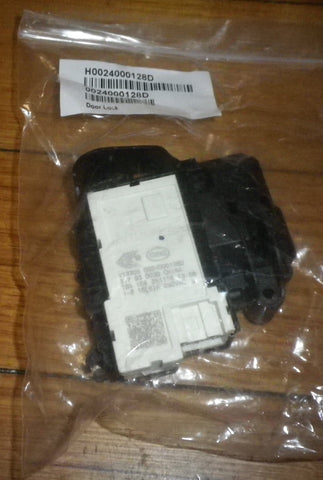

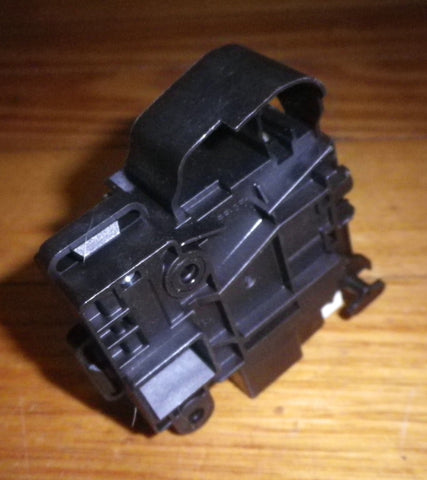

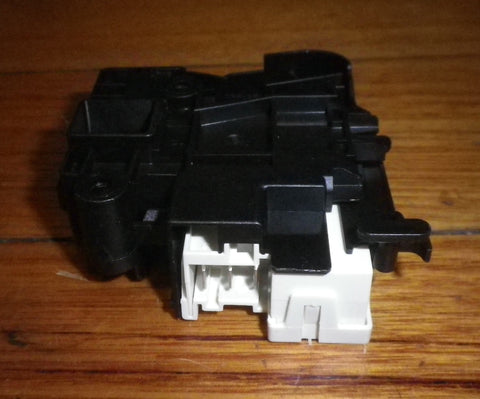

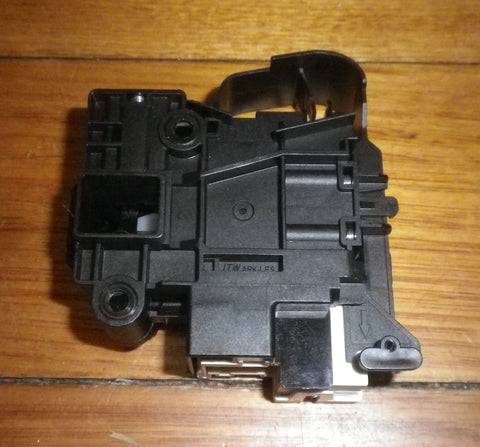

Fisher & Paykel, Haier Front Loader Door Interlock Switch - Part # H0024000128D

Fisher & Paykel, Haier Front Loader Washing Machine Door Interlock Switch.

Genuine Part No. H0024000128D.

Replaces Part No. H0024000128A and other numbers 2805310100, 2805310400, DA003, 50066007, 1680001, FP790715, 790715.

This switch fits some Fisher & Paykel late model front loading washing machines including models WH7560J3 (92236-A), WH7560J3 (93249-A), WH7560P2 (92230), WH7560P2 (92230-A), WH7560P2 (93247-A), WH8060F1 (93228), WH8060F1 (93228-A), WH8060F1 (93255-A), WH8060P1 (93161-A), WH8060P2 (93229), WH8560J3 (93236-A), WH8560J3 (93246-A), WH7560J1 (92137), WH7560J2 (93230-A), WH7560J3 (92239-A), WH7560J3 (95125-A), WH7560P1 (92136), WH8060P1 (98112-A), WH8060P2 (93229-A), WH8060P2 (93248-A), WH8560F1 (92228), WH8560F1 (9228-A), WH8560F1 (93245-A), WH8560J1 (92142), WH8560J2 (92231-A), WH8560P1 (92141), WH8560P2 (92229), WH8560P2 (92229-A), WH8560P2 (93254-A). Also fits Haier models HWF85DW1 (62300-A), HWM85-1482 (61361-A).

Offset mounting holes are 39mm apart. Switch is 76mm long.

This interlock has 3 terminals.

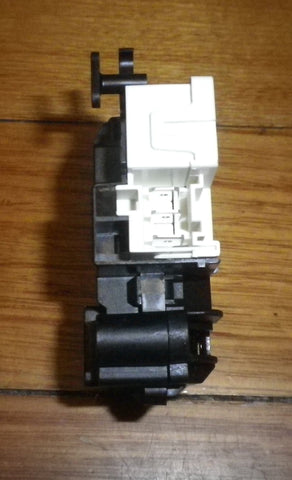

The last three photos show Part No. H0024000128A.
